Level up your party fun with epic gameplay. TH690ST does it all with excellent movie industry standard DCI-P3 color performance, stunning 1080p HDR picture quality, low input lag, and 2300 lumens of 4LED long life span. All you need to do is jump into AAA games with your friends and enjoy never-ending, smooth, and immersive action at your game corner.
Warranty:
2-year manufacturer's warranty
Features:
- Brightness of 2300 Lumens
- Full HD (1920 x 1080) Native Resolution
- 1.2x Zoom & 0.69-0.83:1 Throw Ratio
- 4-LED Light Source
- 120 Hz Refresh Rate & 8.3 ms Latency
- Project a 100" Image from 4.9' Away
- 2 x HDMI 2.0b & 1 x USB Type-A Inputs
- Dual 5W ReVolo Speakers & Optical Out
- HDR/HLG Support
- 2D Keystone Image Adjustment
Video Review:
LIGHT OR DARK ROOM SUPPORT
The 4LED light source powers 2300 lumens of brightness, which can work in dark to moderate lighting conditions, but BenQ lets you optimize that with multiple Game Modes. You have the ability to tweak the projector's performance for game modes specific to lighter or darker room lighting conditions, maximizing image quality no matter when you play.
EASY IMAGE ADJUSTMENT
Getting a 16:9 rectangle for proper gameplay on your wall or projection screen is made easy with built-in image adjustments. You get 1.2x zoom to dial in the image size without having to move the projector, and 2D keystone supports helps to even out any trapezoidal images.
BUILT-IN OR EXTERNAL AUDIO
The TH690ST provides you with dual 5W ReVolo chambered speakers for built-in audio support, along with a 5.1-channel optical audio output to your existing home theater to maximize your home entertainment experience.
ADDITIONAL FEATURES
- 84% DCI-P3 and 98% Rec.709 color coverage
- 0.69 to 0.83:1 throw ratio
- Up to 30,000 hour LED lifespan
- Works with VGA to 4K UHD video sources
- Ceiling mountable with optional mount
- Supports optional DGD5 3D glasses
Technical Specifications:
|
Display System |
DLP |
|
Native Chip Resolution |
1920 x 1080 (Full HD) |
|
Supported Resolutions |
|
|
Maximum Brightness |
2300 Lumens (ANSI) |
|
Offset |
102.5% |
|
Aspect Ratio |
Native: 16:9 |
|
Dynamic Contrast Ratio |
500,000:1 |
|
DLP Link 3D |
Yes |
|
Color Depth |
10-Bit (1.07 Billion Colors) |
|
Scan |
|
|
Latency |
8.3 to 33.4 ms |
|
Lens |
f/2.6 - 2.78 (f = 10.2 - 12.24 mm) |
|
Throw Ratio |
0.69 to 0.83:1 (100" Screen Size @ 4.9' / 1.5 m) |
|
Keystone Correction |
|
|
Supported HDR Input Formats |
HDR10, Hybrid Log Gamma |
|
Digital Zoom |
1.2x |
|
Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
|

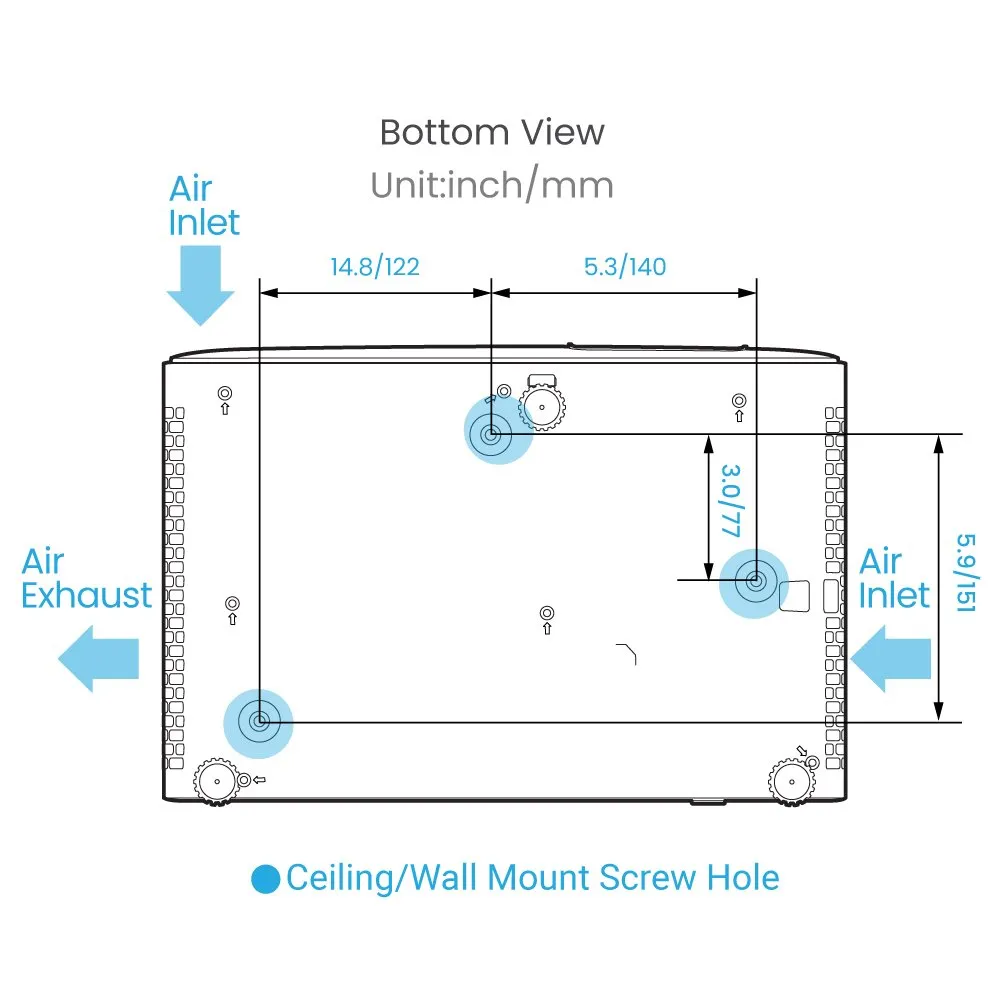

Ceiling Mountable |
Yes |
|
Built-In Speaker |
Yes (Stereo) |
|
Speaker Power |
10W |
|

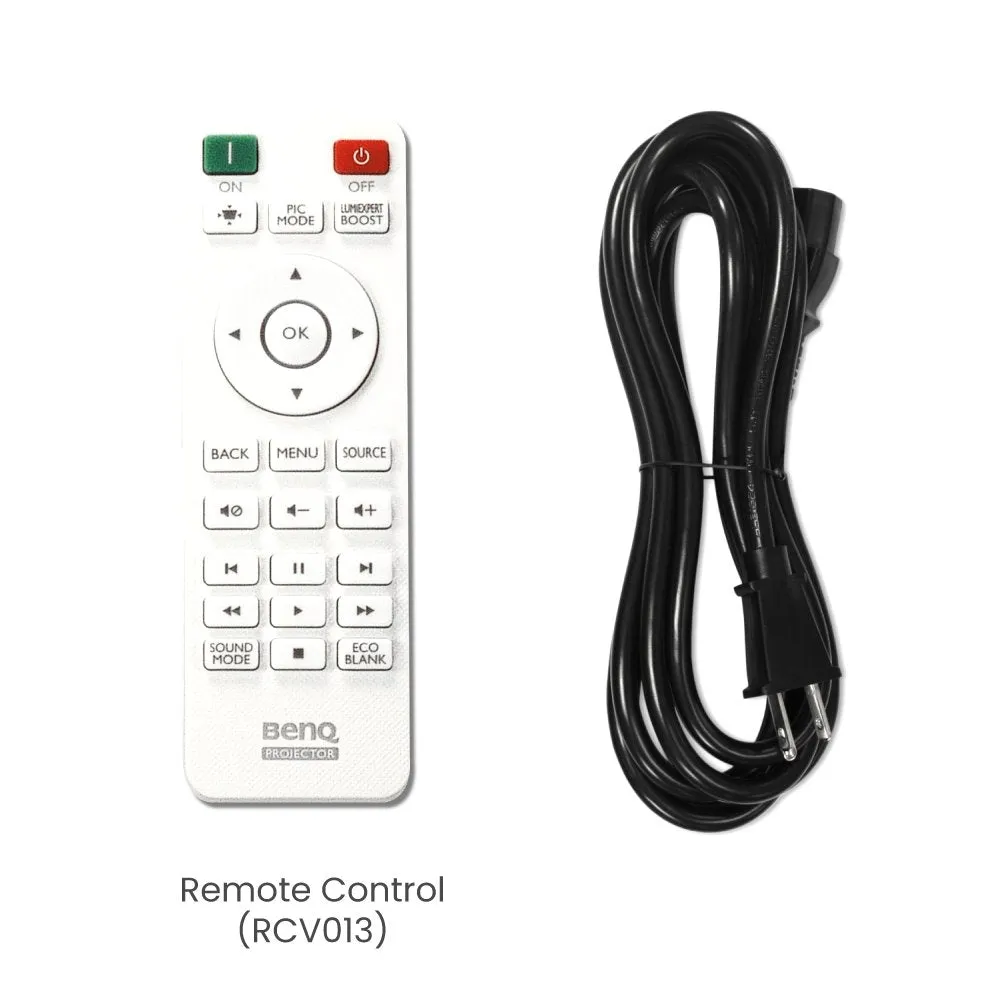

Remote |
Yes |
|

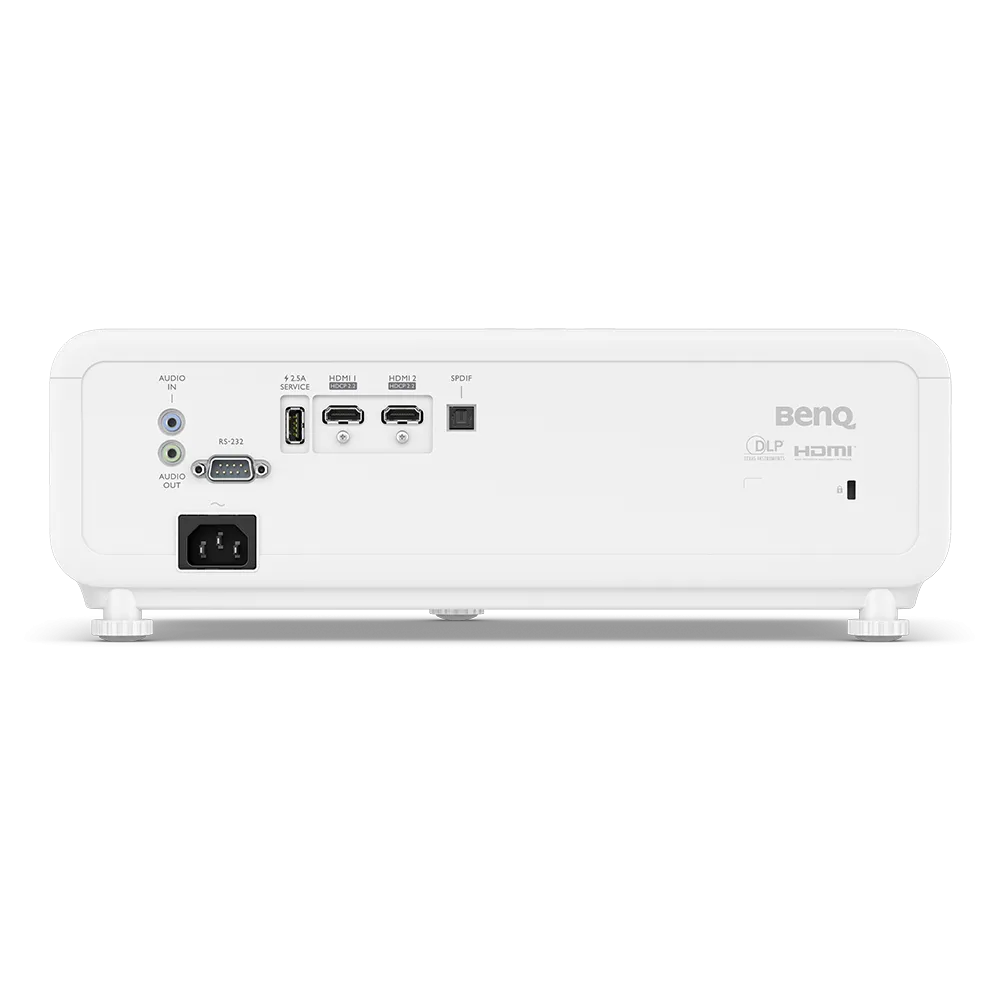

Inputs/Outputs |
|
|
HDCP Support |
Version 2.2 |
|
Bluetooth |
None |
|
Light Source |
Multi-LED |
|
Expected Lamp Life |
|
|
Fan Noise |
|
|
Security |
Cable Lock Slot |
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
|
Power Consumption |
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|

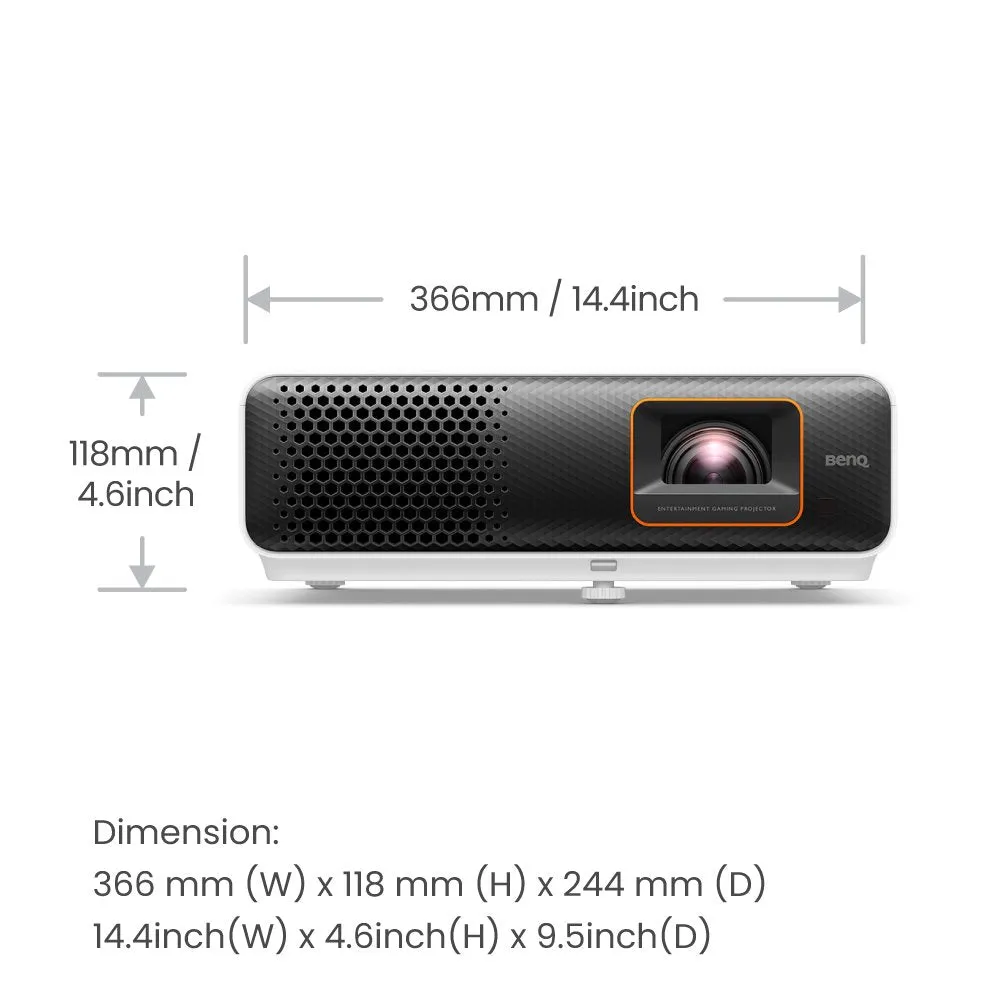

Dimensions (W x H x D) |
14.4 x 9.6 x 4.6" / 366.0 x 244.0 x 118.0 mm |
|
Box Dimensions (LxWxH) |
19 x 15.5 x 9" |
|
Weight |
7.9 lb / 3.6 kg |
|
Package Weight |
11.835 lb |
