The CO-A1 AlphaSense 5,000ppm Carbon Monoxide sensor is designed to detect highly dangerous toxic gas that poses a significant threat to those working in its presence. The circuit board's microprocessor provides zero and span calibration as well as barometric pressure, temperature and % relative humidity sensors. Features on-board memory to log data when used in a remote device.
This sensor can also integrate within various applications such as fixed systems to monitor indoor air environments and industrial safety applications.
Features
- Electrochemical Sensor Measures up to 5,000ppm Carbon Monoxide
- Smart EC Board includes Barometric Pressure, Temperature and % Relative Humidity Sensors
- Smart EC Board adds Serial UART output
- Smart EC Board adds RS485 output with optional
- Easy Integration; Compact & Low Power
Models

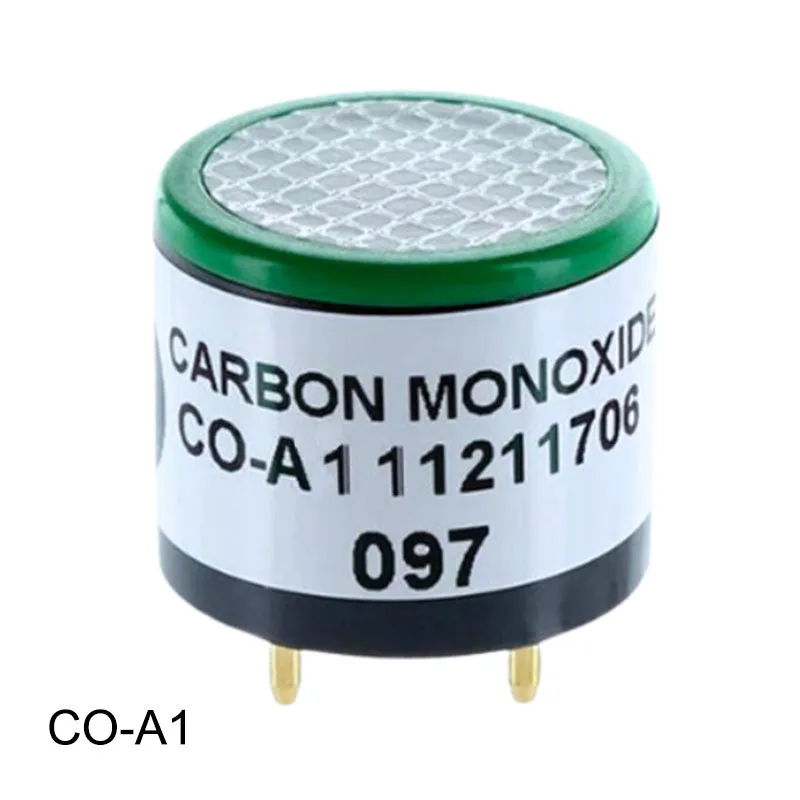

CO-A1 Alphasense 5,000ppm CO Sensor Only – for integration into high-volume OEM products, 20mm diameter, the industry standard size for portable gas detectors.
CM-31911 Development Kit – Easy to use, simply plug the EC Board into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph carbon dioxide, barometric pressure, temperature, and % relative humidity. Includes on-board memory for data logging.
CM-31910 Smart EC Board – Same functionality as the development kit without USB cable or software.
Specifications
- Range: 0-5,000ppm carbon monoxide
- Sensitivity: 55 to 90 nA/ppm in 400ppm CO
- Response Time: < 25 sec. t90 (s) from zero to 400ppm
- Zero current: -5 to 4ppm equivalent in zero air
- Resolution: < 0.5 RMS noise (ppm equivalent)
- Linearity: 15 to 25ppm error rate at full scale from 0-1,000ppm
- Zero drift: < 0.2ppm change per year
- Sensitivity drift: < 8% change / year
- Operating life: > 24 months until 80% original signal
- Digital Output: Serial UART
- Analog Output: Available
Smart EC Board Adds
- Temperature, %RH, Barometric Pressure Sensors on Board
- 64K memory for time-stamped data logging of all measurements
- RS485 output with optional
Development Kit Adds
- Smart EC Board
- Serial USB Cable
- Free GasLab Windows software for real-time measurements, data logging, graphing, sensor configuration.
- RS485 output with optional
Electrical/Mechanical
- Dimensions (sensor): 16.5mm x 20.2mm
- Dimensions (sensor PCB): 40mm X 25mm x 29mm (LxWxH)
- Power Input: 3.3-5.5 VDC
- Current Consumption: 10ma peak, < 3mW average
Warranty
- 90 days - See
Free Easy-to-use GasLab® Software
The Smart EC Board uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Accessories
easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer. Tube cap adapters are not pre-installed. For accurate results you must .
. Custom USB cable enables RS485 communication to GasLab Software for EC Sensor Board and Development Kit.
includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
gives a strong and secure container to mount the sensor. Hydrophobic filters available for enclosure for outdoor use.
