The O2-A1 Alphasense Oxygen sensor is designed to provide engineers, scientists and students an accurate and reliable way to measure up to 25% oxygen levels by volume. This sensor is a low cost, industrial safe, oxygen module designed to last one year.
Features
- Electrochemical Sensor measures up to 25% Oxygen
- Smart EC board adds Barometric Pressure, Temperature and % Relative Humidity Sensors
- Smart EC Board Adds Serial UART Output
- Smart EC board Adds RS485 with Optional
- Easy Integration; Compact & Low Power
Models

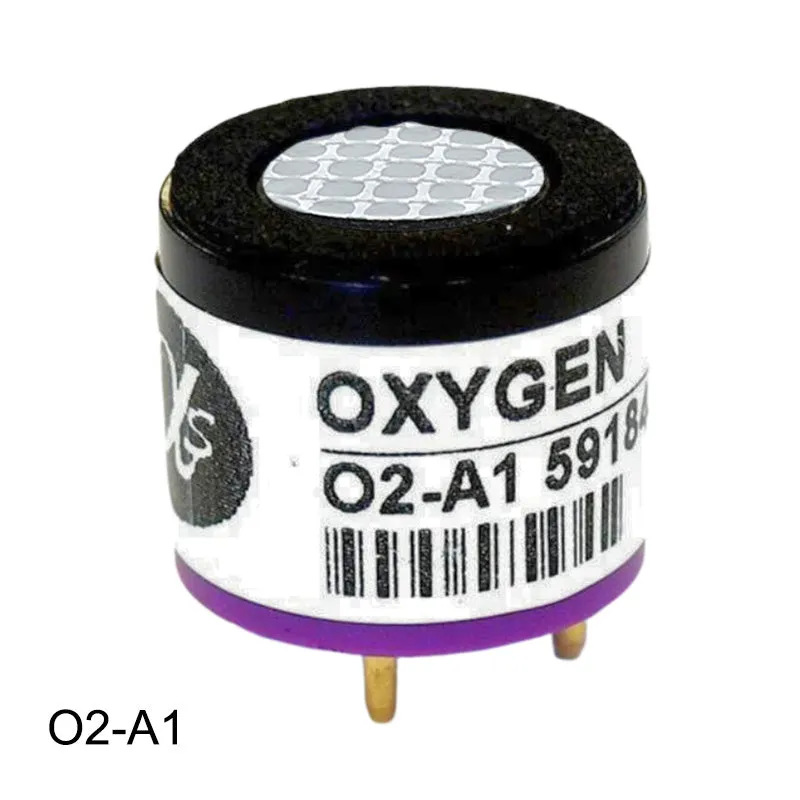

- O2-A1 Sensor Only – Sensor only. Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
- CM-32911 Development Kit – Easy to use, simply plug the board into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph oxygen levels, barometric pressure, temperature, and % relative humidity. Includes on-board memory for data logging.
- CM-32910 Smart EC Board – Same functionality as the development kit without USB cable or software.
Specifications
- Measurement Range: 0-20.9% oxygen
- Output: 80-120 uA @ 20.9% O2
- Response Time: < 15 sec. t90 (s) from 20.9% to 0% O2
- Linearity: 0.6% O2 deviation @ 10% O2
- Output drift: < 1% change @ 3 months
- Operating life: > 24 months until 85% original Output of 20.9% O2
- Analog Output: 0-3VDC
Smart EC Board Adds
- %RH, temperature, barometric pressure sensors
- 64K memory for time-stamped data logging of all measurements
- Serial UART output
- RS485 output with optional
Development Kit Adds
- Smart EC Board
- Serial UART to USB cable
- Free GasLab Windows software for real-time measurements, data logging, graphing, sensor configuration
Electrical/Mechanical
- Dimensions (sensor): 17.4mm x 20.3mm
- Dimensions (sensor PCB): 40mm X 25mm x 29mm (LxWxH)
- Power Input: 3.3-5.5 VDC
- Current Consumption: 10ma peak, < 3mW average
Warranty
- 90 days - See CO2Meter Terms and Conditions
Videos
Free Easy-to-use GasLab® Software
The Smart EC board uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
System Requirements
- Windows XP SP2 or newer
- Microsoft .Net 3.5 Runtime Libraries
Accessories
easily convert 20mm standard gas sensors from diffusion to sampling sensors. Molded polymer. Tube cap adapters are not pre-installed For accurate results you must .
. Custom USB cable enables RS485 communication to GasLab Software for EC Sensor Board and Development Kit.
includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
gives a strong and secure container to mount the sensor. Hydrophobic filters available for enclosure for outdoor use.
