Product Details
＋
RUiXU Lithium Batteries Kits | 15kWH, 20kWH, 25kWH, 30kWH | Self-Heating
Self-heating 48V server rack battery is designed for cold weather using! Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger. The heater pads which draws power from the charger itself.
RX-LFP48100-H
- Nominal voltage ：51.2V
- Nominal [email protected] ：100 Ah
- Min. [email protected]：100 Ah
- Nominal energy :5120Wh
- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
- Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
- Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
- Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha outback

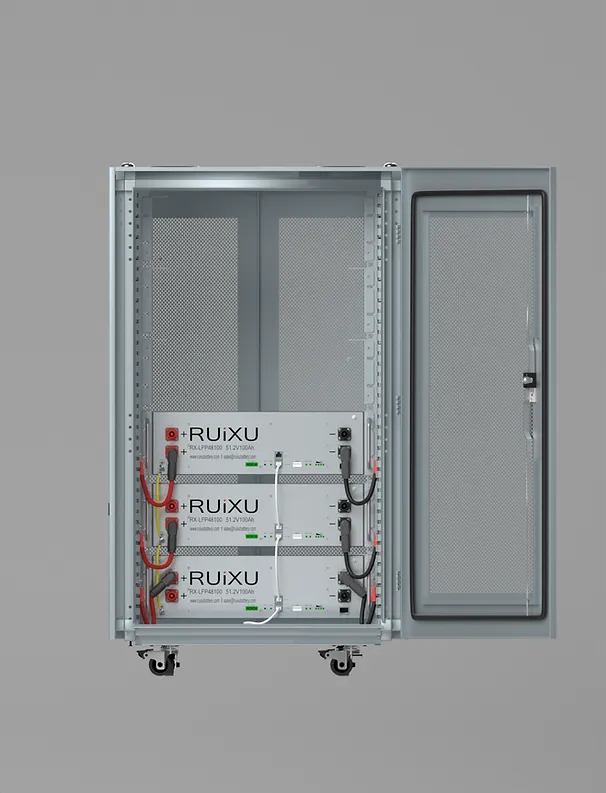

15kWh Lithium Batteries Kits Standard Included:
- (3) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (3) RJ45/CAT5e Patch Cable
- (3) Ground Cable
- (3) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

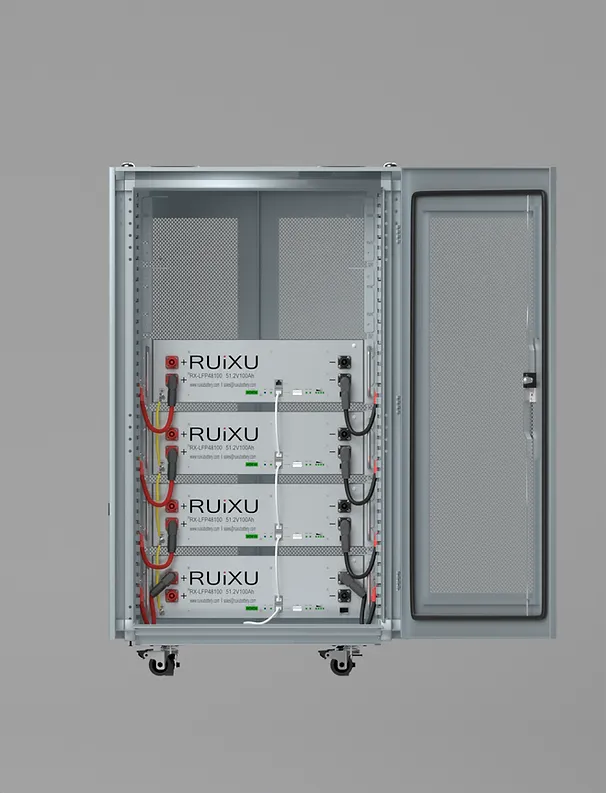

20kWh Lithium Batteries Kits Standard Included:
- (4) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (4) RJ45/CAT5e Patch Cable
- (4) Ground Cable
- (4) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

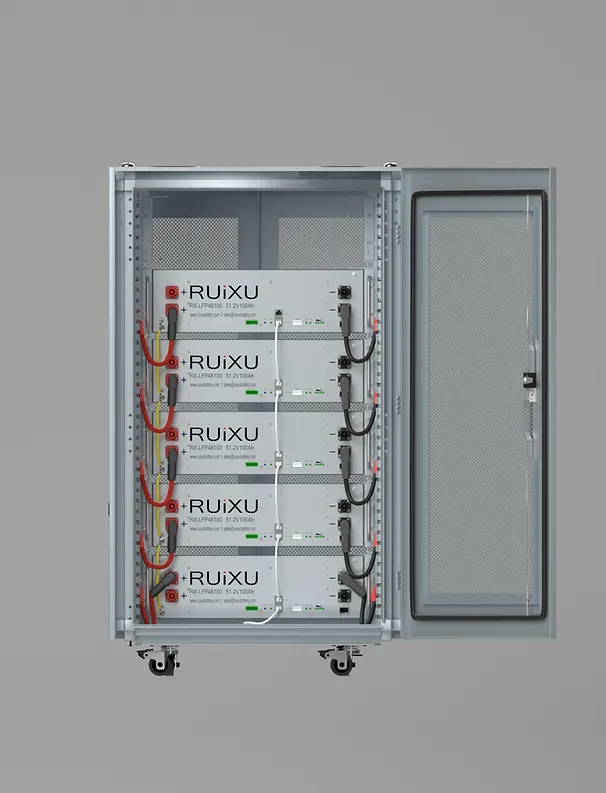

25kWh Lithium Batteries Kits Standard Included:
- (5) RUiXU Self-heating 48V Server Rack battery (RX-LFP48100-H)
- (5) RJ45/CAT5e Patch Cable
- (5) Ground Cable
- (5) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet

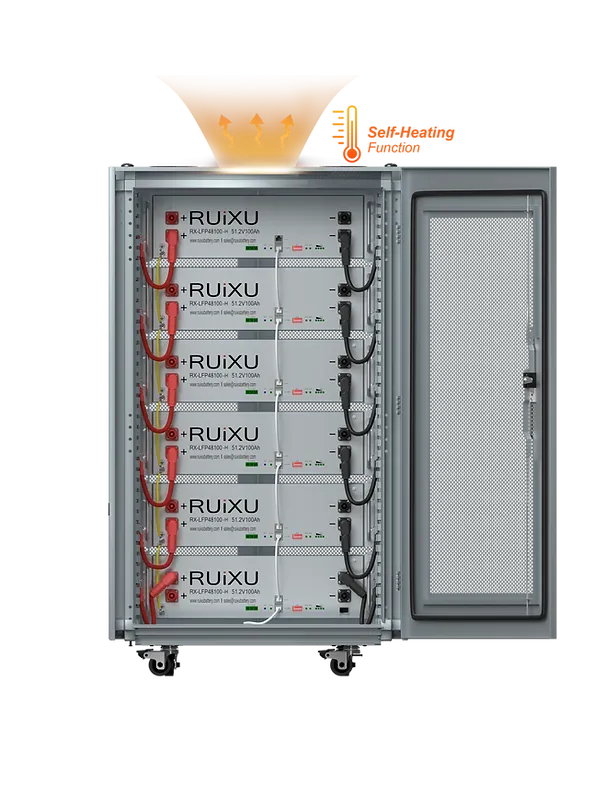

30kWh Lithium Batteries Kits Standard Included:
- (6) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
- (6) RJ45/CAT5e Patch Cable
- (6) Ground Cable
- (6) Sets 30cm Parallel 4AWG Cables per battery
- (1) Pre-assembled 6 Slot Battery Cabinet
Warranty
- 10 years covering product replacement or repair ()
Resources:
Compatible with all leading inverters:
Why Choose RUiXU Server Rack Battery?
| RUiXU | Other Brand |
|
| Size (Ultra-thin) | 3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible | 4U(482x420x161mm) or 4.5U |
| Installation | Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted | Rack mounted |
| Inverter Protocol Choosing | Use DIP address to set the RS485 baud rate and inverter protocol choosing | need to connect with computer to choose protocol |
| Modular | Support up to 32units in parallel,extend to 160KWh system without additional controller | only support 16units in parallel |
| Certification | UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS | / |
| Pre-charge ability(single battery) | 1000000uF,capable of precharging higher power inverters | 20000uF |
| Working Temperature |
Charge:-5°C-59°C Discharge:-10°C-59°C,built-in heater is optional |
Charge:-5°C -59°C Discharge:-10°C -59°C |
